HIGH PRESSURE PLUNGER PUMPS



Bare pump.gif

High pressure pumps
AR series


High pressure pumps
P series


High pressure pumps
K series


High pressure pumps
TR series


PressureJet industrial high pressure plunger pumps are positive displacement triplex piston pumps. In a reciprocating pump, a volume of liquid is drawn into the cylinder through the suction valve on the intake stroke and is discharged under positive pressure through the outlet valves on the discharge stroke. Flow rate of pump is directly proportional to its SPM (Strokes per minute). PressureJet triplex reciprocating plunger pumps have three synchronized plungers that discharge liquids at high pressure with minimum pulsation. Our high pressure triplex plunger pumps include both industrial triplex piston and triplex plunger pump designs.

Here, pistons are reciprocated using crankshaft, not cam. The piston pump design with mechanically actuated inlet valves and moving piston cups permit strong suction and pressures up to 100 kg/cm2. The plunger pump design with pre-set packings and concentric ceramic plungers provide high pressures up to 700 kg/cm2 (10,000 psi) and multiple head and drive options. Our extensive range of industrial triplex high pressure reciprocating piston and plunger pumps provides just the most suitable pump as per specific requirement of flow rate & pressure for thousands of tasks including washing, cleaning, water jetting, hydro blasting, hydro testing, hydro jetting, wet sandlasting, splitting, sewer cleaning, transfer, reverse osmosis, descaling, deburring, misting, injecting and dosing. Our industrial triplex reciprocating plunger pumps are operating in harsh seawater desalination systems, reclaim car washing/vehicle cleaning, hydrostatic accumulator charging and multi-station central cleaning systems. Maintenance and production managers specify PressureJet industrial high pressure piston pumps because they are extremely reliable, efficient, dependable, easy to maintain and provide long life.


AR series

FLOW
Minimum Flow 8 lpm @ Maximum Pressure 100 bar
Maximum Flow 40 lpm @ Minimum Pressure 140 bar
PRESSURE
Maximum Flow 22 lpm @ Maximum Pressure 500 bar
M.O.C.
Brass

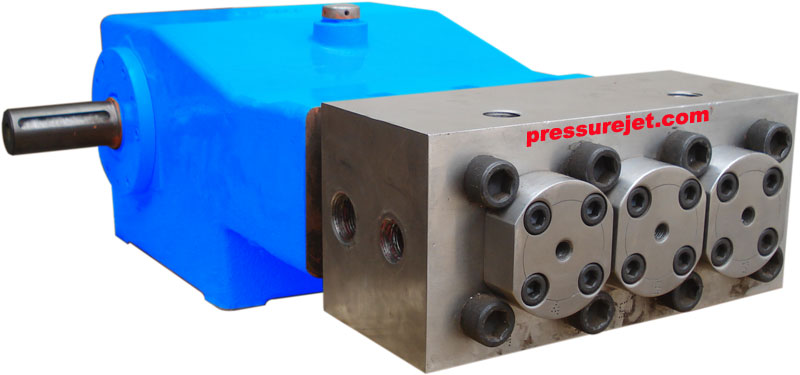

P series

FLOW
Minimum Flow 5 lpm @ Maximum Pressure 1200 bar
Maximum Flow 139 lpm @ Minimum Pressure 50 bar
PRESSURE
Maximum Flow 139 lpm @ Maximum Pressure 100 bar
M.O.C.
Brass

K series

FLOW
Minimum Flow 40 lpm @ Maximum Pressure 68 bar
Maximum Flow 655 lpm @ Minimum Pressure 790 bar
PRESSURE
Maximum Flow 655 lpm @ Maximum Pressure 905 bar
M.O.C.
Brass

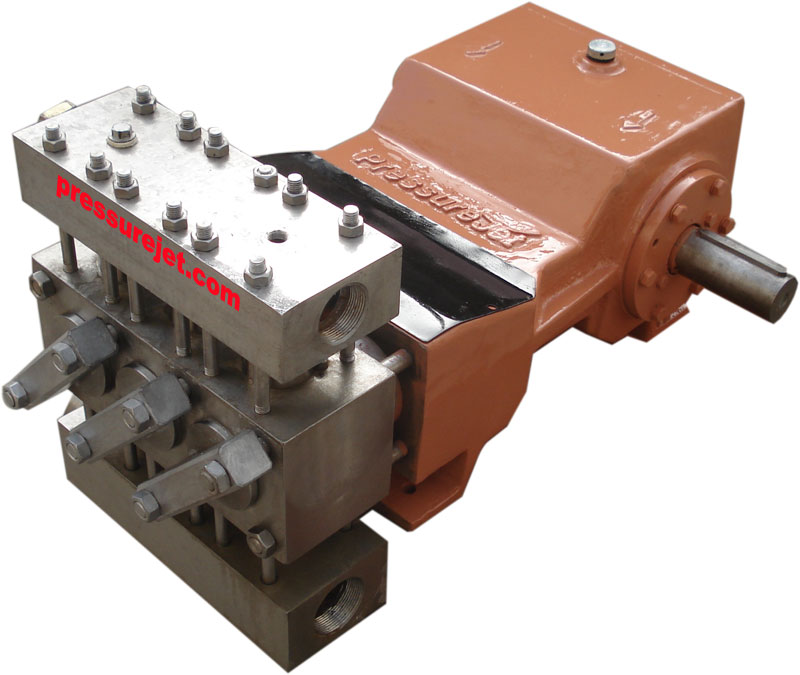

TR series

FLOW
Minimum Flow 1 lpm @ Maximum Pressure 500 bar
Maximum Flow 638 lpm @ Minimum Pressure 20 bar
PRESSURE
Maximum Flow 1 lpm @ Maximum Pressure 500 bar
M.O.C.
Brass
